ProSert™ XTN20
Hydro-pneumatic Blind Rivet Nut Tool
The combined world-class innovations from POP® Avdel® created a high speed, lightweight tool with great strength, endurance, excellent ergonomics and optimal flexibility – responding to the latest and highest standards in tool manufacturing.
Patented dual operating mode technology ensures enhanced productivity, improving your return on investment with the lowest installation cost per fastener.
- • Flexible operation in both pull-to-force or pull-to-stroke modes

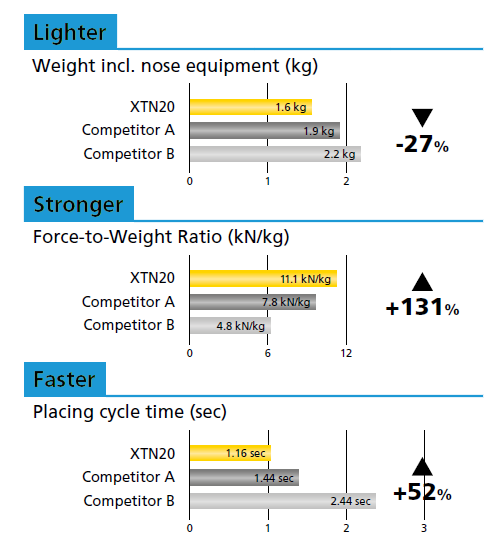

- • High force-to-weight ratio of 11.1kN/kg
- • Durable high-strength installation mandrels as standard
- • Long lasting hydraulic lip seals maximise re-priming intervals
- • Convenient powered spin-out override button
- • Easy to use patented, tool free, quick installation mandrel system
POP® Avdel® Placing Matrix
POP Nut® Product Range
| Aluminium | Steel | Stainless Steel | |
| Eurosert® | - | M3-M10 | M4-M5 |
| Thin Sheet Nutsert® | M3-M10 | M3-M10 | M3-M10 |
| DK/DL | - | M4-M10 | |
| Euro Hexsert®/Hexsert® | - | M3-M8 | M6 |
| Squaresert® | - | M5-M8 | |
| High Strength Hexsert® | - | M6-M8 |
POP® Avdel® Placing Matrix
| Aluminium | Steel | Stainless Steel | |
| Standard Nut | M3-M10 | M3-M8 | M4-M6 |
| Knurled Nut | M4-M8 | M4-M6 | - |
| Closed End Nut | M3-M10 | M3-M8 | M4-M6 |
| Hexagonal Nut | M4-M8 | M4-M8 | M4-M6 |
| Tetra Nut | M4-M8 | M4-M8 | - |
| HB Bolt | M6-M8 | M6-M8 | - |
| Pipe Nut | M6 | M6 | - |
| Pull Force: 5.0 bar | 17.65 kN | 3968 lbf |
| Air Supply Pressure: Min/Max | 5-7 bar | 72.5-101.5 lbf/in2 |
| Noise Level: | < 75 dB(A) | < 75 dB(A) |
| Piston Stroke: | 3-7 mm | 0.118-0.275 in |
| Weight: including nose equipment | 1.59 kg | 3.50 lb |
